| Item | Unit | JMS1000 | |||
| Injection Unit: | |||||
| Screw type | A | B | C | D | |
| Screw diameter | mm | 100 | 110 | 120 | 130 |
| Screw L/D ratio | 24.3 | 22.1 | 20.2 | 18.7 | |
| Shot Volume (Theoretical) | cm3 | 4004 | 4844 | 5765 | 6766 |
| Shot weight | g | 3603 | 4360 | 5189 | 6089 |
| Shot weight | oz | 127.1 | 153.8 | 183 | 214.8 |
| Injection pressure | Mpa | 211 | 174 | 146 | 125 |
| Injection Speed | mm/s | 91 | |||
| Injection stroke | mm | 510 | |||
| Screw speed | rpm | 0~107 | |||
| Clamping Unit: | |||||
| Clamping force | KN | 10000 | |||
| Toggle Stroke | mm | 1200 | |||
| Space between tie bars | mm | 1120x1120 | |||

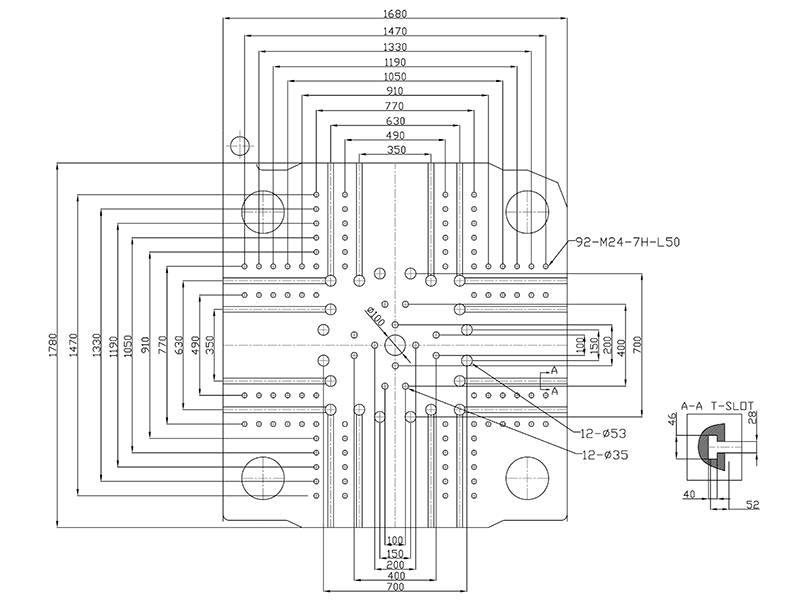

| Platen dimensions (HxV) | mm | 1680x1780 | |||
| Max.Mould Height | mm | 1200 | |||
| Min.Mould Height | mm | 500 | |||
| Ejector Stroke | mm | 320 | |||
| Ejector Force | KN | 215 | |||
| Ejector Number | 21 | ||||
| Others: | |||||
| Max.Pump Pressure | Mpa | 16 | |||
| Pump Motor Power | KW | 45+45 | |||
| Heater Power | KW | 79.35 | |||

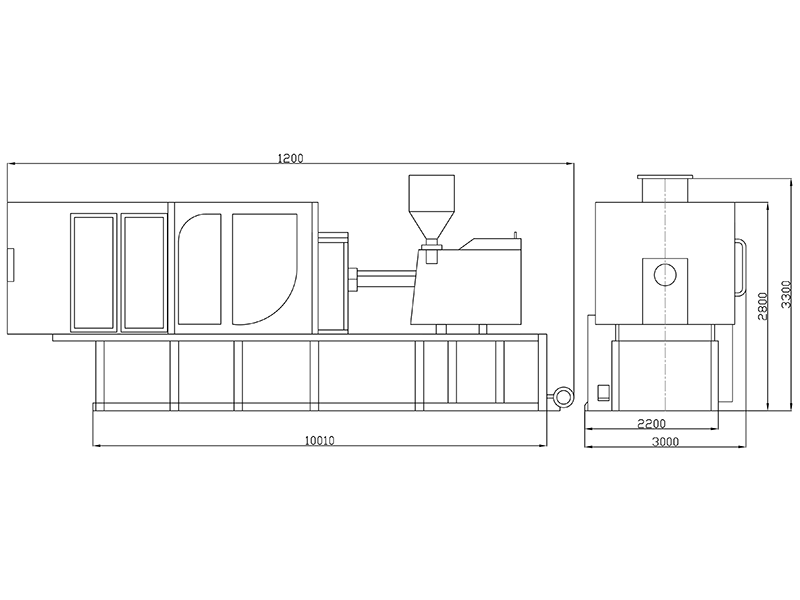

| Machine Dimensions (LxWxH) | m | 12.0x3.0x3.3 | |||
| Oil Tank Capacity | Liter | 1900 | |||
| Machine Weight | Ton | 55 | |||
| Item | Unit | JMS1000 | |||
| Injection Unit: | |||||
| Screw type | A | B | C | D | |
| Screw diameter | mm | 100 | 110 | 120 | 130 |
| Screw L/D ratio | 24.3 | 22.1 | 20.2 | 18.7 | |
| Shot Volume (Theoretical) | cm3 | 4004 | 4844 | 5765 | 6766 |
| Shot weight | g | 3603 | 4360 | 5189 | 6089 |
| Shot weight | oz | 127.1 | 153.8 | 183 | 214.8 |
| Injection pressure | Mpa | 211 | 174 | 146 | 125 |
| Injection Speed | mm/s | 91 | |||
| Injection stroke | mm | 510 | |||
| Screw speed | rpm | 0~107 | |||
| Clamping Unit: | |||||
| Clamping force | KN | 10000 | |||
| Toggle Stroke | mm | 1200 | |||
| Space between tie bars | mm | 1120x1120 | |||
| Platen dimensions (HxV) | mm | 1680x1780 | |||
| Max.Mould Height | mm | 1200 | |||
| Min.Mould Height | mm | 500 | |||

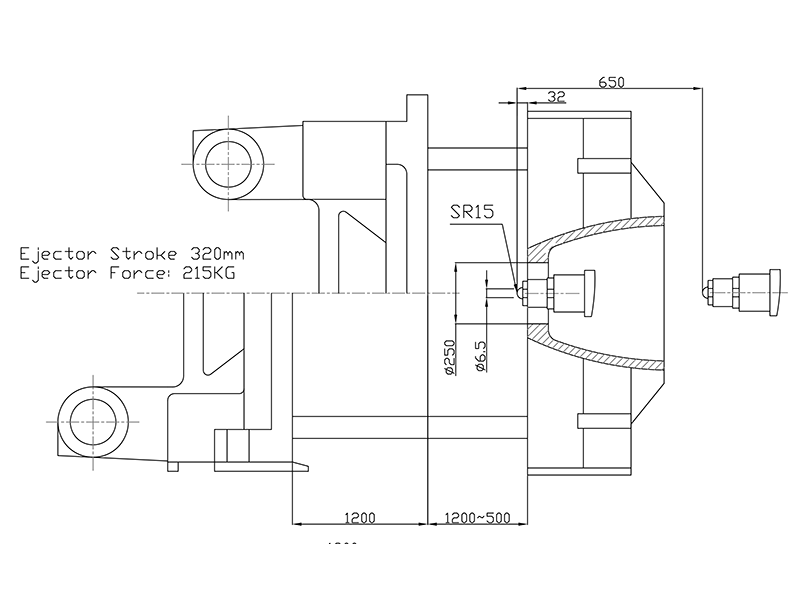

| Ejector Stroke | mm | 320 | |||
| Ejector Force | KN | 215 | |||
| Ejector Number | 21 | ||||
| Others: | |||||
| Max.Pump Pressure | Mpa | 16 | |||
| Pump Motor Power | KW | 45+45 | |||
| Heater Power | KW | 79.35 | |||
| Machine Dimensions (LxWxH) | m | 12.0x3.0x3.3 | |||
| Oil Tank Capacity | Liter | 1900 | |||
| Machine Weight | Ton | 55 | |||

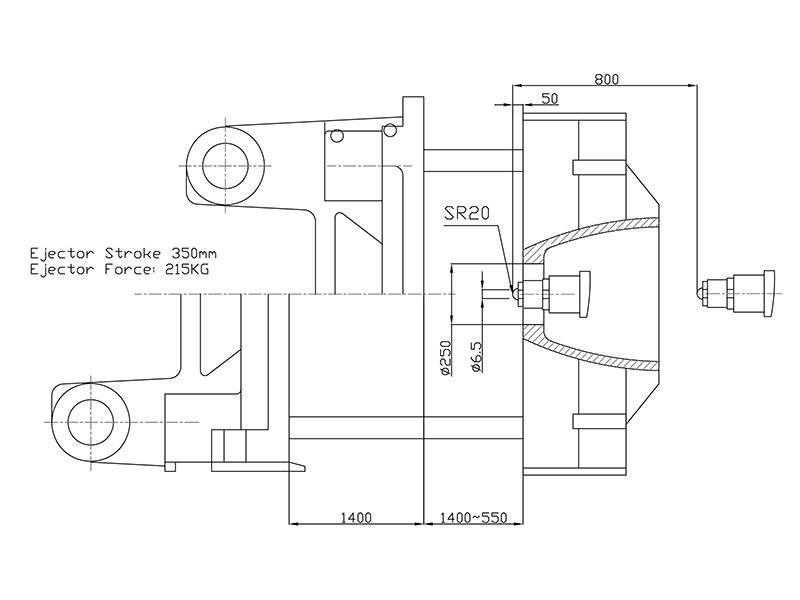

| Item | Unit | JMS1300 | |||
| Injection Unit: | |||||
| Screw type | A | B | C | D | |
| Screw diameter | mm | 110 | 120 | 130 | 140 |
| Screw L/D ratio | 26.2 | 24.1 | 22.4 | 20.9 | |
| Shot Volume (Theoretical) | cm3 | 5224 | 6217 | 7297 | 8462 |
| Shot weight | g | 4702 | 5595 | 6567 | 7616 |
| Shot weight | oz | 165.8 | 197.4 | 231.6 | 268.6 |
| Injection pressure | Mpa | 205 | 172 | 147 | 126 |
| Injection Speed | mm/s | 84 | |||
| Injection stroke | mm | 550 | |||
| Screw speed | rpm | 0~91 | |||
| Clamping Unit: | |||||
| Clamping force | KN | 13000 | |||
| Toggle Stroke | mm | 1400 | |||
| Space between tie bars | mm | 1350x1280 | |||

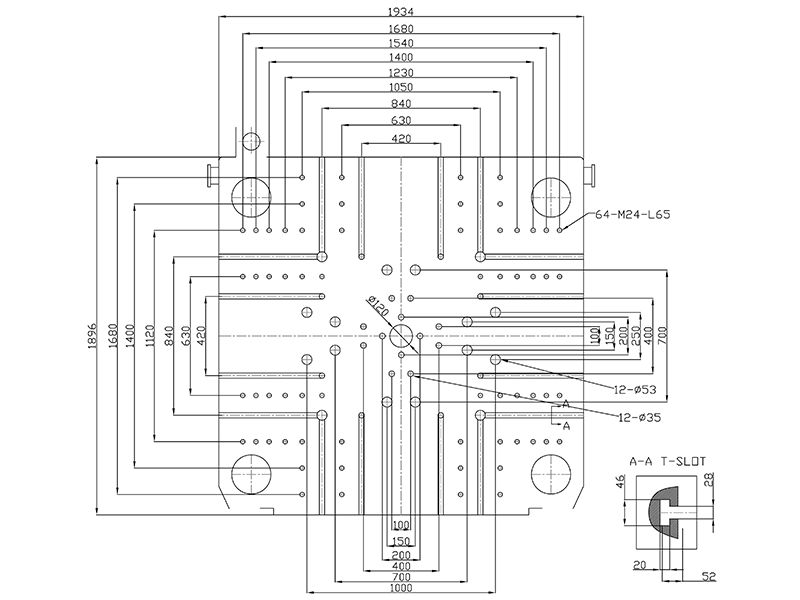

| Platen dimensions (HxV) | mm | 1934x1896 | |||
| Max.Mould Height | mm | 1400 | |||
| Min.Mould Height | mm | 550 | |||
| Ejector Stroke | mm | 350 | |||
| Ejector Force | KN | 215 | |||
| Ejector Number | 25 | ||||
| Others: | |||||
| Max.Pump Pressure | Mpa | 16 | |||
| Pump Motor Power | KW | 55+55 | |||
| Heater Power | KW | 84.95 | |||
| Machine Dimensions (LxWxH) | m | 13.2x3.1x3.6 | |||
| Oil Tank Capacity | Liter | 2400 | |||
| Machine Weight | Ton | 67 | |||
| Item | Unit | JMS1600 | |||
| Injection Unit: | |||||
| Screw type | A | B | C | D | |
| Screw diameter | mm | 120 | 130 | 140 | 150 |
| Screw L/D ratio | 26.1 | 24.1 | 22.4 | 20.9 | |
| Shot Volume (Theoretical) | cm3 | 6669 | 7827 | 9078 | 10421 |
| Shot weight | g | 6002 | 7045 | 8170 | 9379 |
| Shot weight | oz | 211.7 | 248.5 | 288.2 | 330.8 |
| Injection pressure | Mpa | 193 | 164 | 142 | 123 |
| Injection Speed | mm/s | 104 | |||
| Injection stroke | mm | 590 | |||
| Screw speed | rpm | 0~99 | |||
| Clamping Unit: | |||||
| Clamping force | KN | 16000 | |||
| Toggle Stroke | mm | 1600 | |||
| Space between tie bars | mm | 1500x1415 | |||

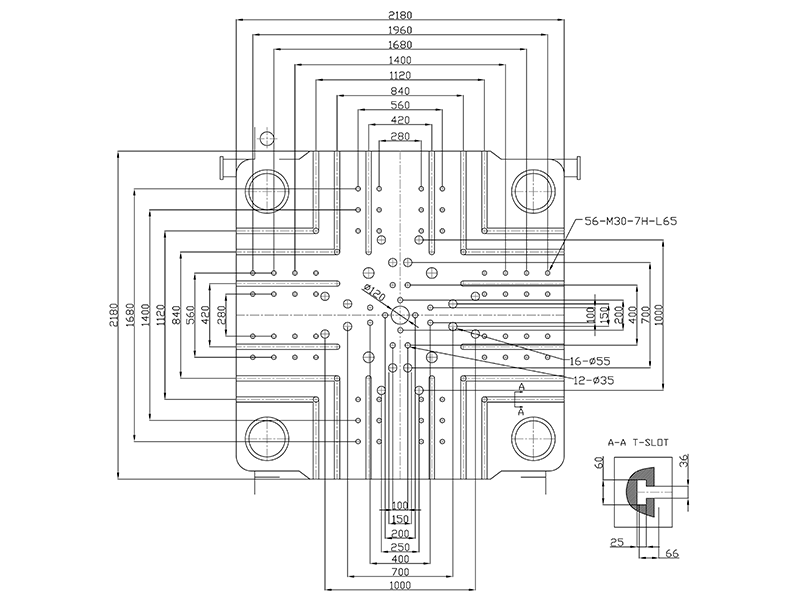

| Platen dimensions (HxV) | mm | 2180x2180 | |||
| Max.Mould Height | mm | 1500 | |||
| Min.Mould Height | mm | 700 | |||

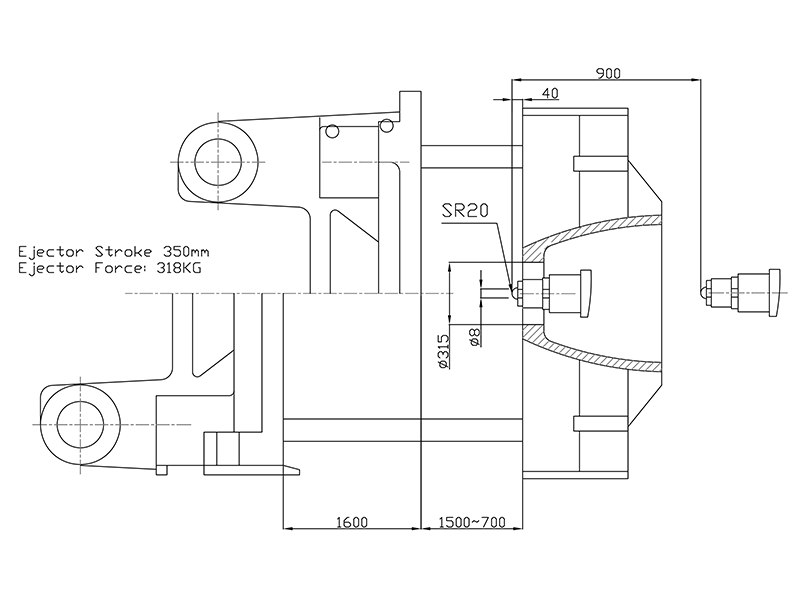

| Ejector Stroke | mm | 350 | |||
| Ejector Force | KN | 318 | |||
| Ejector Number | 29 | ||||
| Others: | |||||
| Max.Pump Pressure | Mpa | 16 | |||
| Pump Motor Power | KW | 45+45+45 | |||
| Heater Power | KW | 101.85 | |||

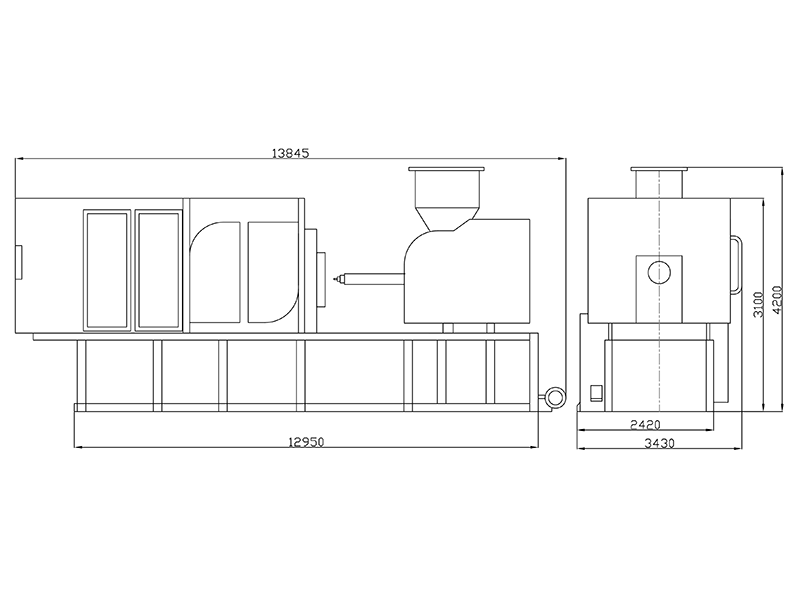

| Machine Dimensions (LxWxH) | m | 13.85x3.43x4.2 | |||
| Oil Tank Capacity | Liter | 2800 | |||
| Machine Weight | Ton | 105 | |||
| Item | Unit | JMS2100 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 140 | 150 | 160 |
| Screw L/D ratio | 22.4 | 20.9 | 19.6 | |
| Shot Volume (Theoretical) | cm3 | 11084 | 12723 | 14476 |
| Shot weight | g | 10086 | 11578 | 13174 |
| Shot weight | oz | 355.8 | 408.4 | 464.7 |
| Injection pressure | Mpa | 163 | 142 | 125 |
| Injection Speed | mm/s | 95 | ||
| Injection stroke | mm | 720 | ||
| Screw speed | rpm | 0~80 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 21000 | ||
| Toggle Stroke | mm | 1800 | ||
| Space between tie bars | mm | 1750x1600 | ||

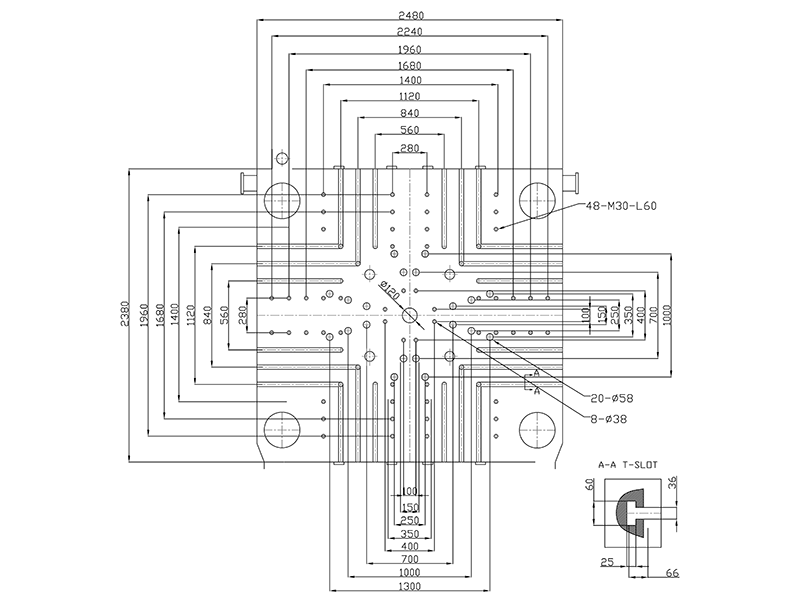

| Platen dimensions (HxV) | mm | 2480x2380 | ||
| Max.Mould Height | mm | 1700 | ||
| Min.Mould Height | mm | 780 | ||

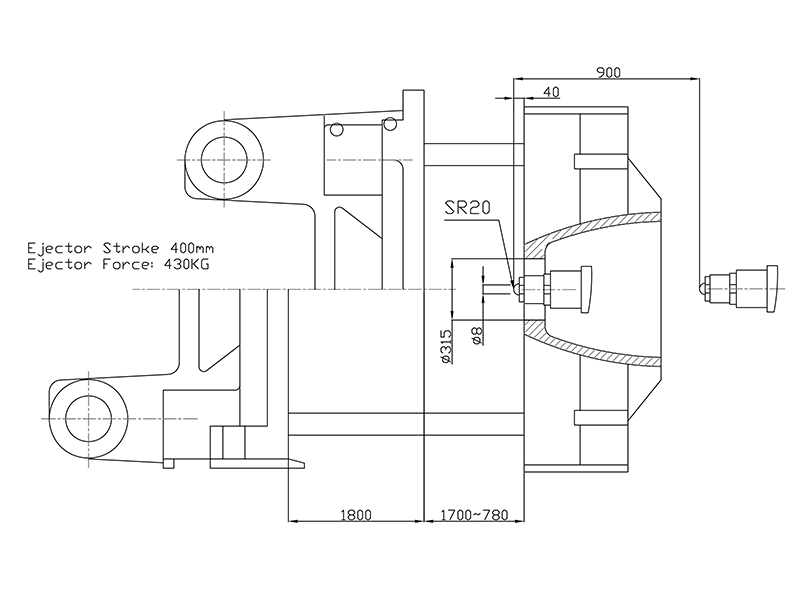

| Ejector Stroke | mm | 400 | ||
| Ejector Force | KN | 430 | ||
| Ejector Number | 29 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 45+45+45 | ||
| Heater Power | KW | 114.05 | ||

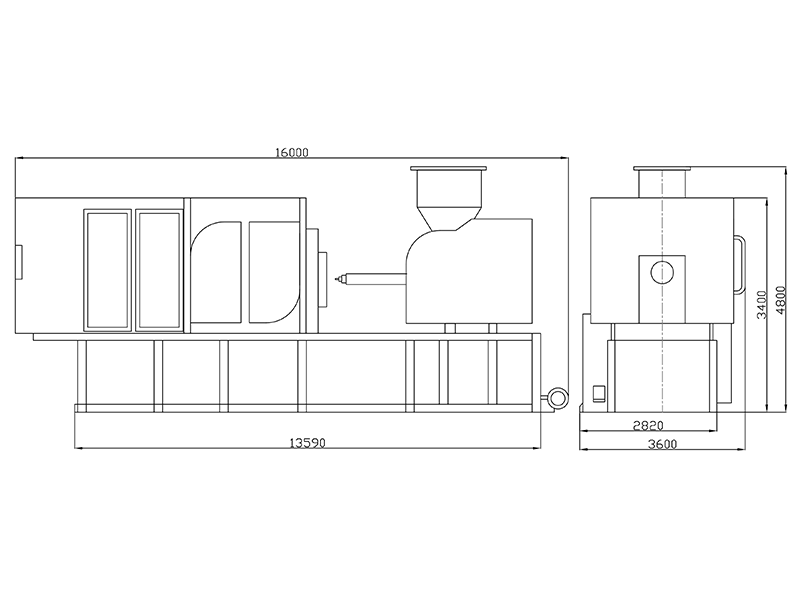

| Machine Dimensions (LxWxH) | m | 16.0x3.6x4.8 | ||
| Oil Tank Capacity | Liter | 3000 | ||
| Machine Weight | Ton | 139 | ||
| Item | Unit | JMS2800 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 170 | 200 | 215 |
| Screw L/D ratio | 23.5 | 20 | 21 | |
| Shot Volume (Theoretical) | cm3 | 19293 | 35154 | 43530 |
| Shot weight | g | 17557 | 31990 | 39612 |
| Shot weight | oz | 620.4 | 1130.4 | 1399.7 |
| Injection pressure | Mpa | 161 | 137 | 135 |
| Injection Speed | mm/s | 86.2 | 73.5 | 64.3 |
| Injection stroke | mm | 850 | 1120 | 1200 |
| Screw speed | rpm | 0-65 | 0-60 | 0-50 |
| Clamping Unit: | ||||
| Clamping force | KN | 28000 | ||

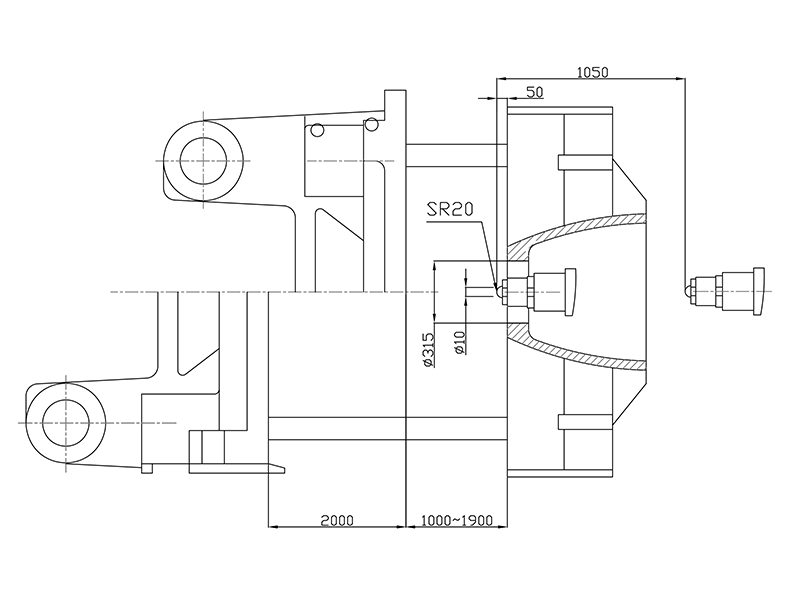

| Toggle Stroke | mm | 2000 | ||
| Space between tie bars | mm | 1900x1750 | ||

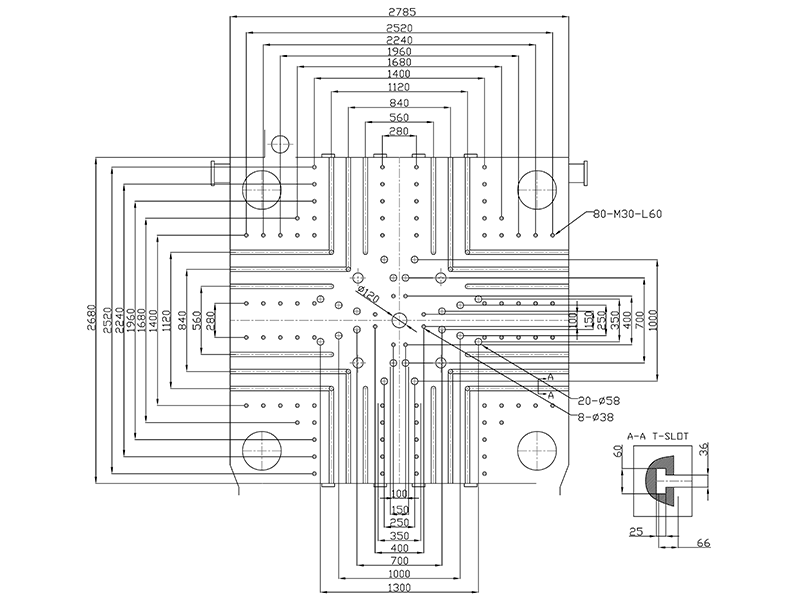

| Platen dimensions (HxV) | mm | 2735x2685 | ||
| Max.Mould Height | mm | 1900 | ||
| Min.Mould Height | mm | 1000 | ||
| Ejector Stroke | mm | 450 | ||
| Ejector Force | KN | 430 | ||
| Ejector Number | 29 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 55x3 | 45+55x3 | 55x4 |
| Heater Power | KW | 170 | 170 | 188 |

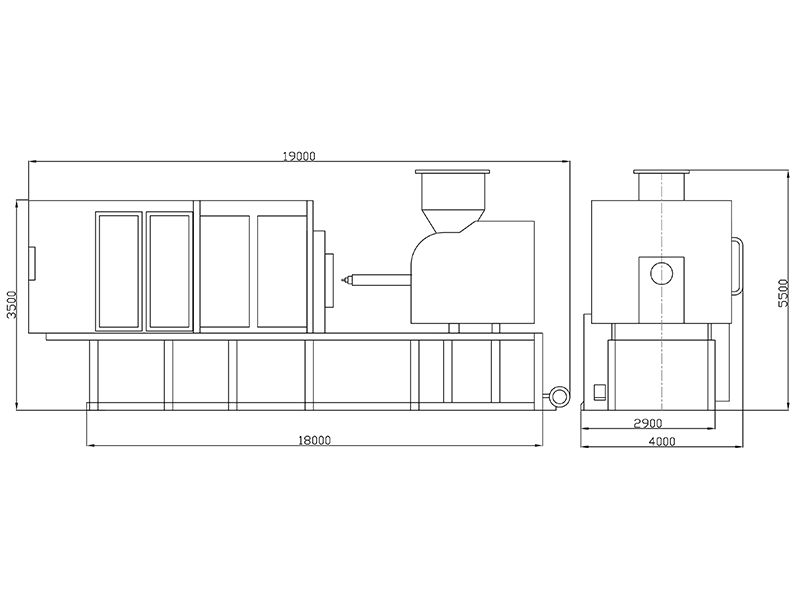

| Machine Dimensions (LxWxH) | m | 19x4x5.5 | ||
| Oil Tank Capacity | Liter | 4000 | ||
| Machine Weight | Ton | 192 | 197 | 209 |
| Item | Unit | JMS3300 |
| Injection Unit: | ||
| Screw type | A | |
| Screw diameter | mm | 215 |
| Screw L/D ratio | 21 | |
| Shot Volume (Theoretical) | cm3 | 43530 |
| Shot weight | g | 39612 |
| Shot weight | oz | 1399.7 |
| Injection pressure | Mpa | 135 |
| Injection Speed | mm/s | 64.3 |
| Injection stroke | mm | 1200 |
| Screw speed | rpm | 0-50 |
| Clamping Unit: | ||
| Clamping force | KN | 33000 |

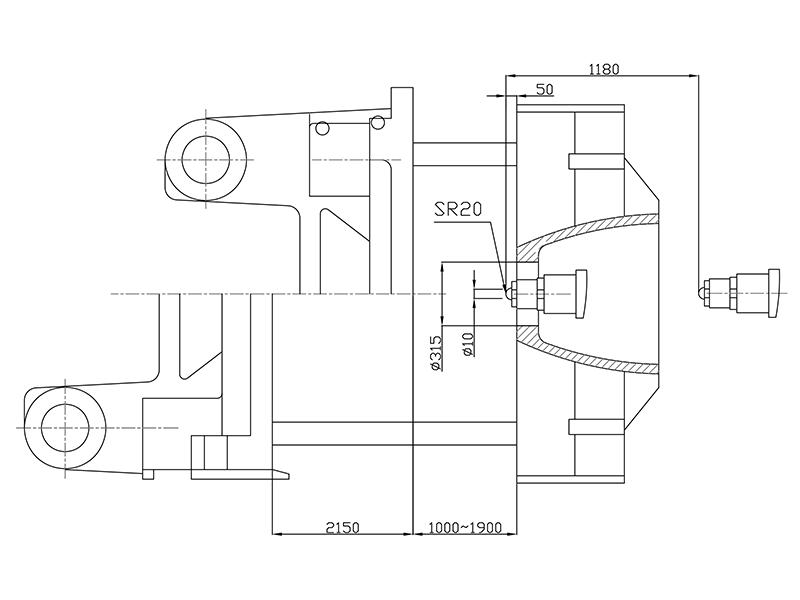

| Toggle Stroke | mm | 2150 |
| Space between tie bars | mm | 2160x1900 |

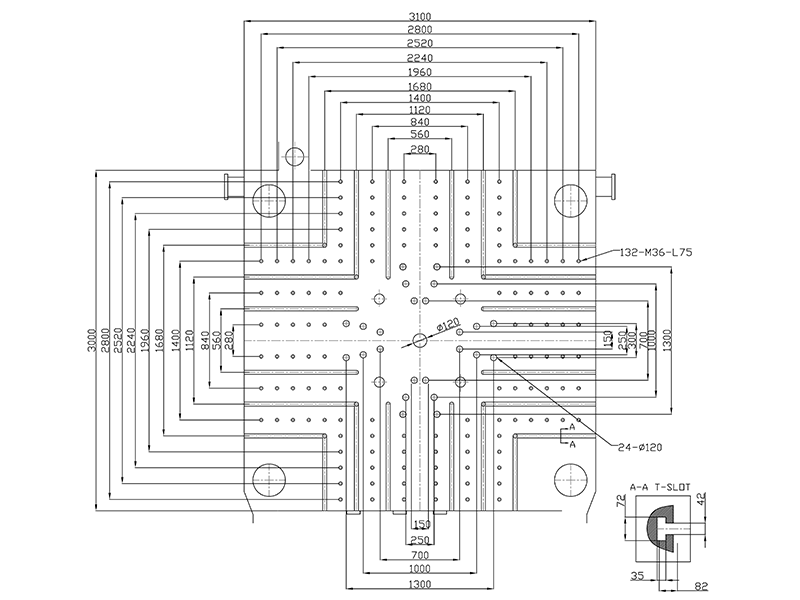

| Platen dimensions (HxV) | mm | 3100x3005 |
| Max.Mould Height | mm | 1900 |
| Min.Mould Height | mm | 1000 |
| Ejector Stroke | mm | 500 |
| Ejector Force | KN | 550 |
| Ejector Number | 25 | |
| Others: | ||
| Max.Pump Pressure | Mpa | 16 |
| Pump Motor Power | KW | 55x4 |
| Heater Power | KW | 188 |

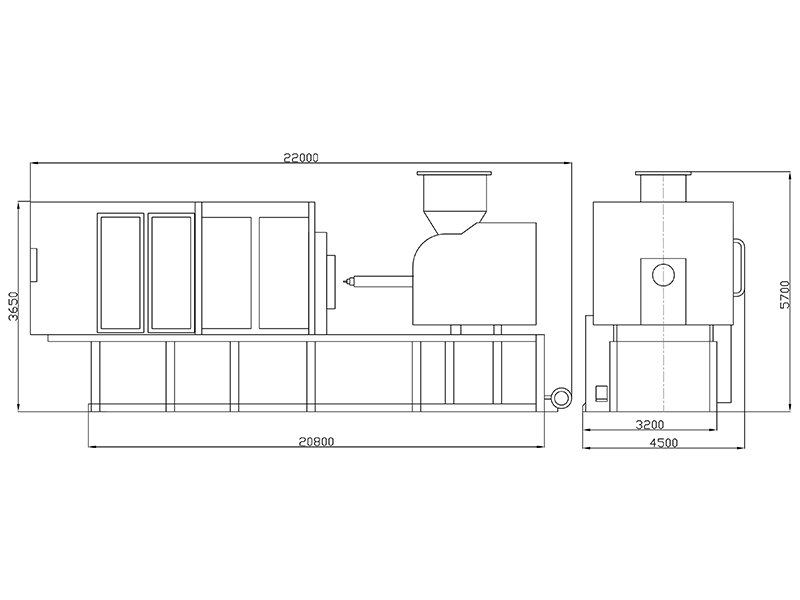

| Machine Dimensions (LxWxH) | m | 22x4.5x5.7 |
| Oil Tank Capacity | Liter | 4700 |
| Machine Weight | Ton | 250 |
