| Item | Unit | JMS58 | ||
| Injection Unit | ||||
| Screw type | / | A | B | C |
| Screw diameter | mm | 26 | 30 | 34 |
| Screw L/D ratio | / | 24 | 21 | 19 |
| Shot Volume (Theoretical) | cm3 | 66 | 88 | 113 |
| Shot weight | g | 60 | 80 | 113 |
| Shot weight | oz | 2.1 | 2.8 | 3.6 |
| Injection pressure | Mpa | 245 | 184 | 143 |
| Injection Speed | mm/s | 120 | ||
| Injection stroke | mm | 125 | ||
| Screw speed | rpm | 0~220 | ||
| Clamping Unit | ||||
| Clamping force | KN | 580 | ||
| Toggle Stroke | mm | 270 | ||
| Space between tie bars | mm | 310 x 310 | ||

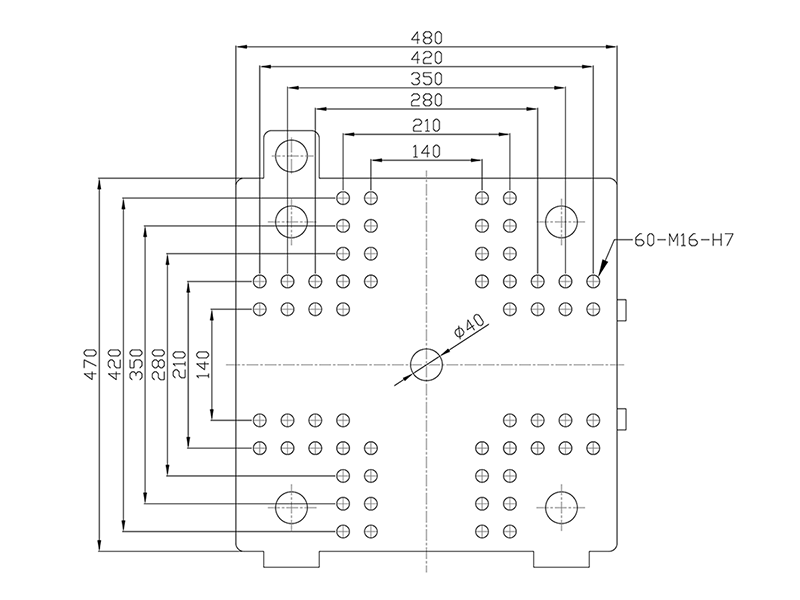

| Platen dimensions (HxV) | mm | 480 x 470 | ||
| Max.Mould Height | mm | 320 | ||
| Min.Mould Height | mm | 120 | ||

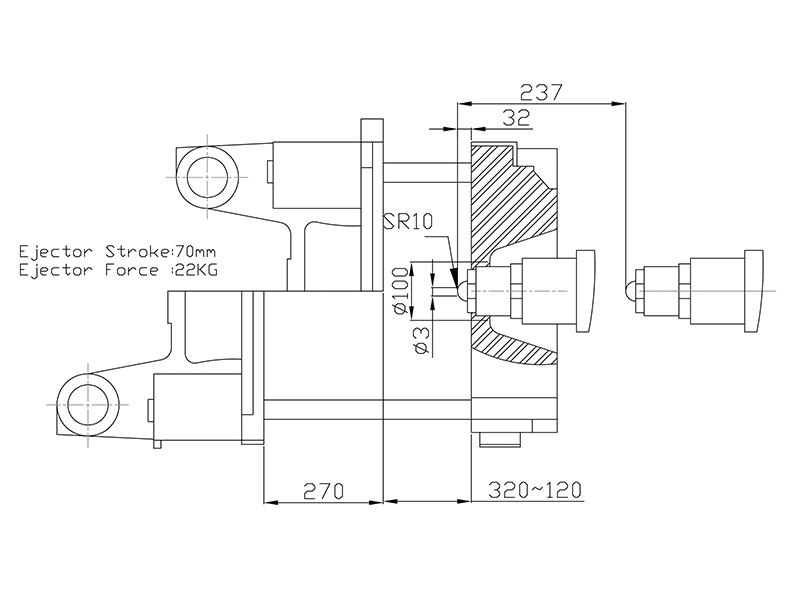

| Ejector Stroke | mm | 70 | ||
| Ejector Force | KN | 22 | ||
| Ejector Number | / | 1 | ||
| Others | ||||
| Max.Pump Pressure | Mpa | 17.5 | ||
| Pump Motor Power | KW | 7.5 | ||
| Heater Power | KW | 7.1 | ||

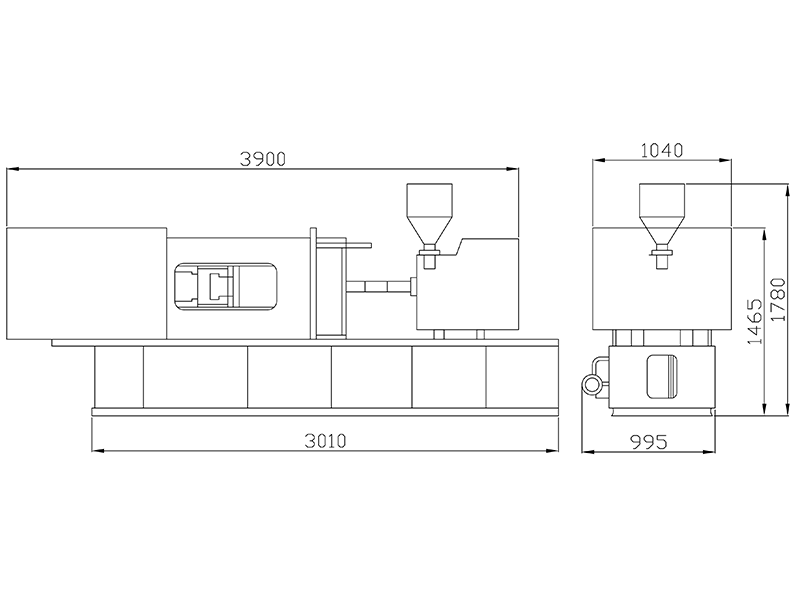

| Machine Dimensions (LxWxH) | m | 3.9 x 1.04 x 1.78 | ||
| Oil Tank Capacity | Liter | 160 | ||
| Machine Weight | Ton | 2.5 | ||
| Item | Unit | JMS58 | ||
| Injection Unit | ||||
| Screw type | / | A | B | C |
| Screw diameter | mm | 26 | 30 | 34 |
| Screw L/D ratio | / | 24 | 21 | 19 |
| Shot Volume (Theoretical) | cm3 | 66 | 88 | 113 |
| Shot weight | g | 60 | 80 | 113 |
| Shot weight | oz | 2.1 | 2.8 | 3.6 |
| Injection pressure | Mpa | 245 | 184 | 143 |
| Injection Speed | mm/s | 120 | ||
| Injection stroke | mm | 125 | ||
| Screw speed | rpm | 0~220 | ||
| Clamping Unit | ||||
| Clamping force | KN | 580 | ||
| Toggle Stroke | mm | 270 | ||
| Space between tie bars | mm | 310 x 310 | ||
| Platen dimensions (HxV) | mm | 480 x 470 | ||
| Max.Mould Height | mm | 320 | ||
| Min.Mould Height | mm | 120 | ||
| Ejector Stroke | mm | 70 | ||
| Ejector Force | KN | 22 | ||
| Ejector Number | / | 1 | ||
| Others | ||||
| Max.Pump Pressure | Mpa | 17.5 | ||
| Pump Motor Power | KW | 7.5 | ||
| Heater Power | KW | 7.1 | ||
| Machine Dimensions (LxWxH) | m | 3.9 x 1.04 x 1.78 | ||
| Oil Tank Capacity | Liter | 160 | ||
| Machine Weight | Ton | 2.5 | ||

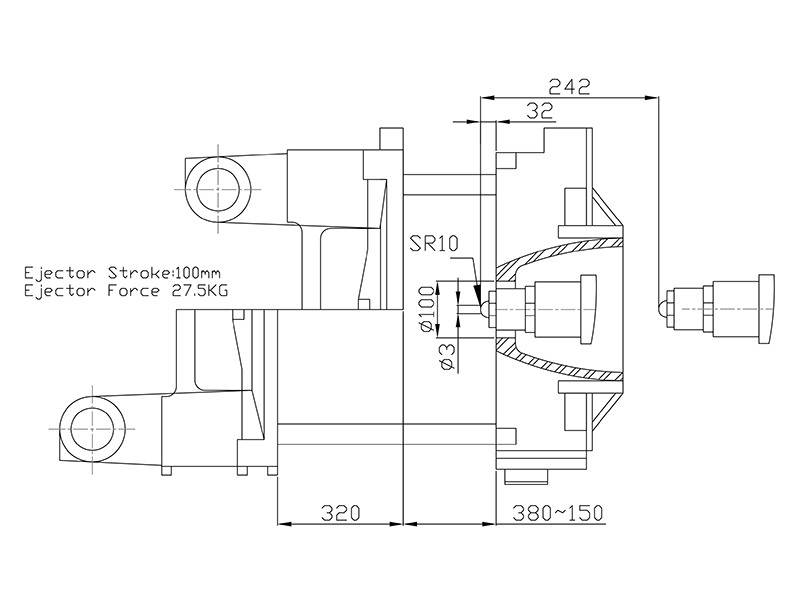

| Item | Unit | JMS88 | ||
| Injection Unit | ||||
| Screw type | / | A | B | C |
| Screw diameter | mm | 35 | 37 | 40 |
| Screw L/D ratio | / | 20.6 | 19.5 | 18 |
| Shot Volume (Theoretical) | cm3 | 125 | 135 | 158 |
| Shot weight | g | 109 | 122 | 142 |
| Shot weight | oz | 3.9 | 4.3 | 5.1 |
| Injection pressure | Mpa | 193 | 173 | 148 |
| Injection Speed | mm/s | 93 | ||
| Injection stroke | mm | 126 | ||
| Screw speed | rpm | 0~220 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 880 | ||
| Toggle Stroke | mm | 320 | ||
| Space between tie bars | mm | 365 x 365 | ||

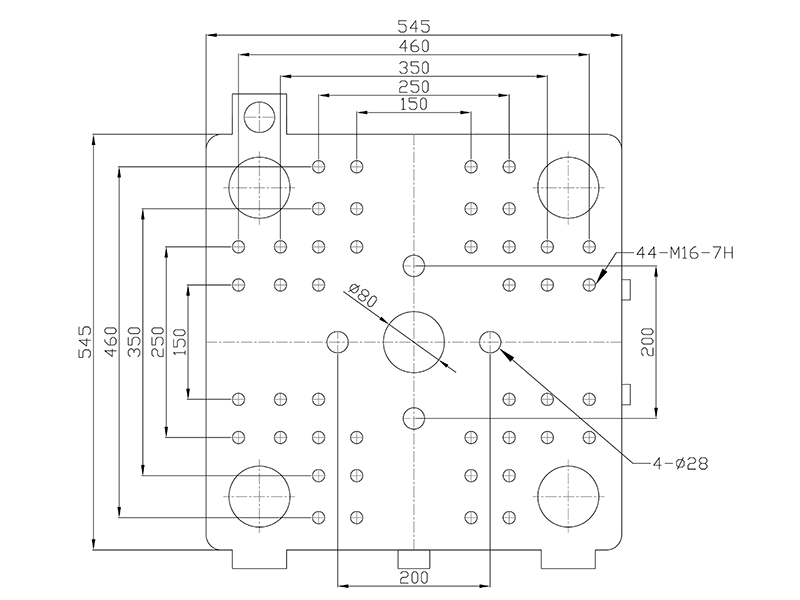

| Platen dimensions (HxV) | mm | 545 x 545 | ||
| Max.Mould Height | mm | 380 | ||
| Min.Mould Height | mm | 150 | ||
| Ejector Stroke | mm | 100 | ||
| Ejector Force | KN | 27.5 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 11 | ||
| Heater Power | KW | 7.9 | ||

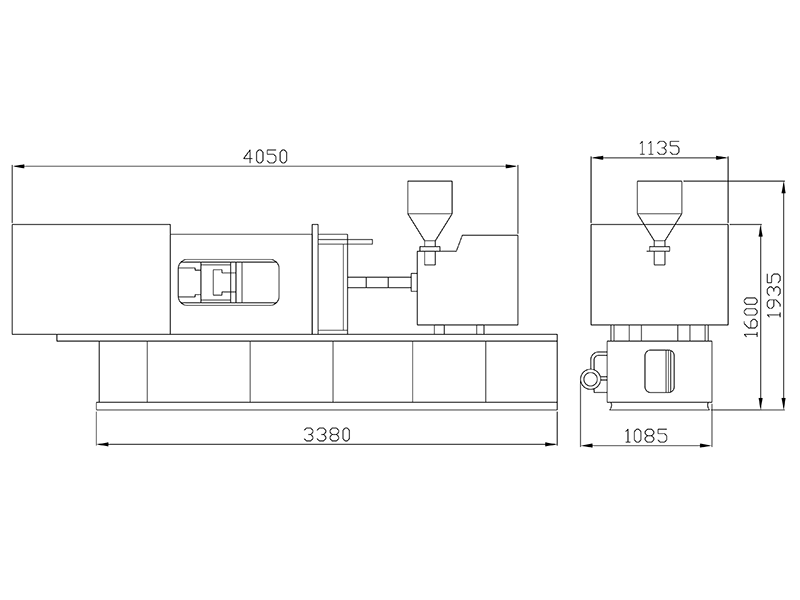

| Machine Dimensions (LxWxH) | m | 4.05 x 1.14 x 1.94 | ||
| Oil Tank Capacity | Liter | 200 | ||
| Machine Weight | Ton | 3.5 | ||
| Item | Unit | JMS88 | ||
| Injection Unit | ||||
| Screw type | / | A | B | C |
| Screw diameter | mm | 35 | 37 | 40 |
| Screw L/D ratio | / | 20.6 | 19.5 | 18 |
| Shot Volume (Theoretical) | cm3 | 125 | 135 | 158 |
| Shot weight | g | 109 | 122 | 142 |
| Shot weight | oz | 3.9 | 4.3 | 5.1 |
| Injection pressure | Mpa | 193 | 173 | 148 |
| Injection Speed | mm/s | 93 | ||
| Injection stroke | mm | 126 | ||
| Screw speed | rpm | 0~220 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 880 | ||
| Toggle Stroke | mm | 320 | ||
| Space between tie bars | mm | 365 x 365 | ||
| Platen dimensions (HxV) | mm | 545 x 545 | ||
| Max.Mould Height | mm | 380 | ||
| Min.Mould Height | mm | 150 | ||
| Ejector Stroke | mm | 100 | ||
| Ejector Force | KN | 27.5 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 11 | ||
| Heater Power | KW | 7.9 | ||
| Machine Dimensions (LxWxH) | m | 4.05 x 1.14 x 1.94 | ||
| Oil Tank Capacity | Liter | 200 | ||
| Machine Weight | Ton | 3.5 | ||

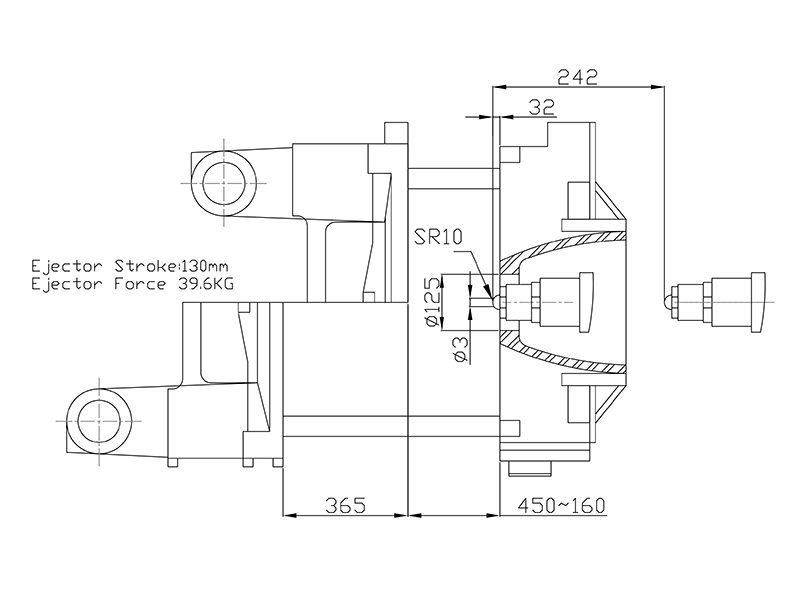

| Item | Unit | JMS128 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 37 | 40 | 43 |
| Screw L/D ratio | 21.1 | 19.6 | 18.2 | |
| Shot Volume (Theoretical) | cm3 | 183 | 214 | 247 |
| Shot weight | g | 164 | 192 | 222 |
| Shot weight | oz | 5.8 | 6.8 | 7.8 |
| Injection pressure | Mpa | 196 | 168 | 145 |
| Injection Speed | mm/s | 99 | ||
| Injection stroke | mm | 170 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 1280 | ||
| Toggle Stroke | mm | 365 | ||
| Space between tie bars | mm | 412x412 | ||

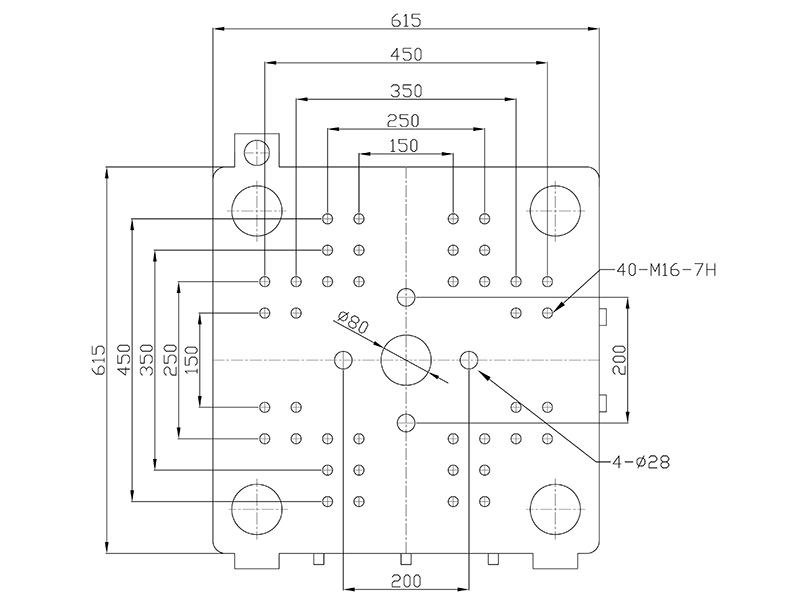

| Platen dimensions (HxV) | mm | 615x615 | ||
| Max.Mould Height | mm | 450 | ||
| Min.Mould Height | mm | 160 | ||
| Ejector Stroke | mm | 130 | ||
| Ejector Force | KN | 39.6 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 13 | ||
| Heater Power | KW | 9.5 | ||

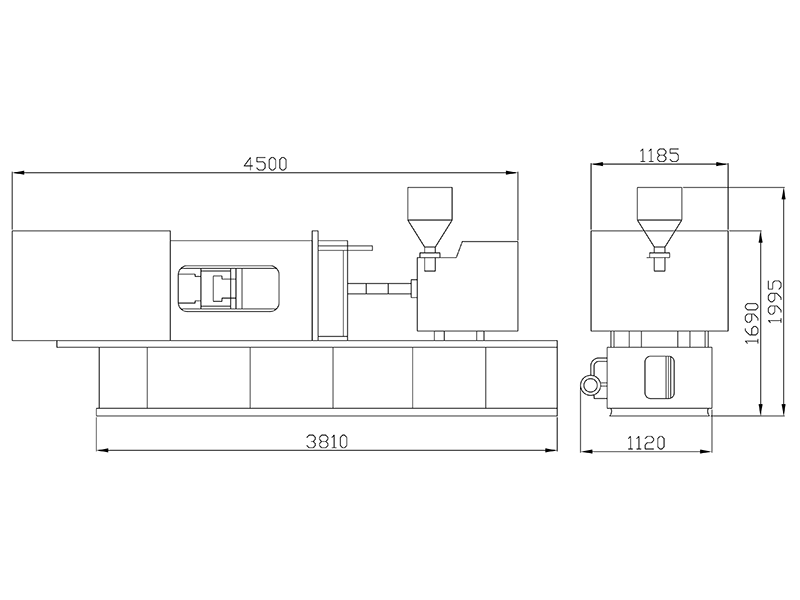

| Machine Dimensions (LxWxH) | m | 4.5x1.2x2.0 | ||
| Oil Tank Capacity | Liter | 250 | ||
| Machine Weight | Ton | 4.35 | ||
| Item | Unit | JMS128 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 37 | 40 | 43 |
| Screw L/D ratio | 21.1 | 19.6 | 18.2 | |
| Shot Volume (Theoretical) | cm3 | 183 | 214 | 247 |
| Shot weight | g | 164 | 192 | 222 |
| Shot weight | oz | 5.8 | 6.8 | 7.8 |
| Injection pressure | Mpa | 196 | 168 | 145 |
| Injection Speed | mm/s | 99 | ||
| Injection stroke | mm | 170 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 1280 | ||
| Toggle Stroke | mm | 365 | ||
| Space between tie bars | mm | 412x412 | ||
| Platen dimensions (HxV) | mm | 615x615 | ||
| Max.Mould Height | mm | 450 | ||
| Min.Mould Height | mm | 160 | ||
| Ejector Stroke | mm | 130 | ||
| Ejector Force | KN | 39.6 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 13 | ||
| Heater Power | KW | 9.5 | ||
| Machine Dimensions (LxWxH) | m | 4.5x1.2x2.0 | ||
| Oil Tank Capacity | Liter | 250 | ||
| Machine Weight | Ton | 4.35 | ||

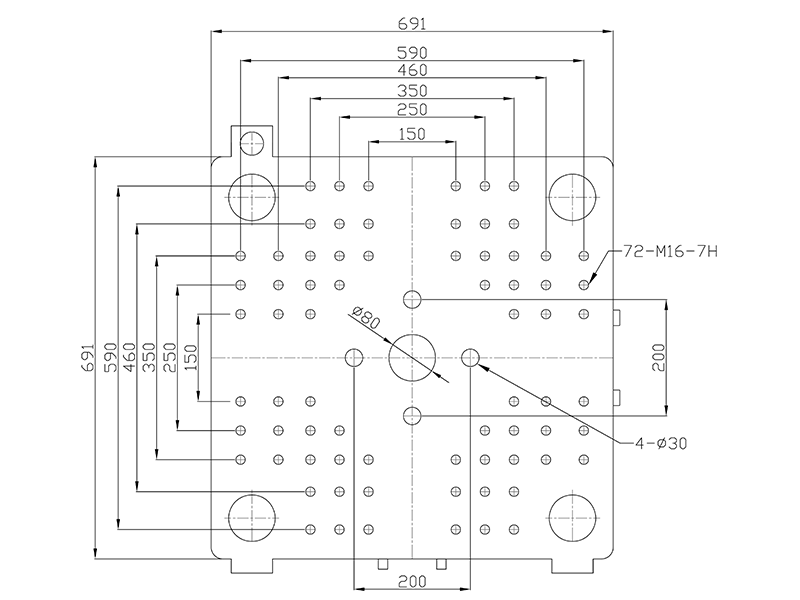

| Item | Unit | JMS160 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 40 | 45 | 48 |
| Screw L/D ratio | 22.5 | 20 | 18.8 | |
| Shot Volume (Theoretical) | cm3 | 270 | 342 | 389 |
| Shot weight | g | 243 | 308 | 350 |
| Shot weight | oz | 8.6 | 10.9 | 12.4 |
| Injection pressure | Mpa | 215 | 169 | 149 |
| Injection Speed | mm/s | 103 | ||
| Injection stroke | mm | 215 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 1600 | ||
| Toggle Stroke | mm | 445 | ||
| Space between tie bars | mm | 470x470 | ||
| Platen dimensions (HxV) | mm | 691x691 | ||
| Max.Mould Height | mm | 520 | ||
| Min.Mould Height | mm | 180 | ||

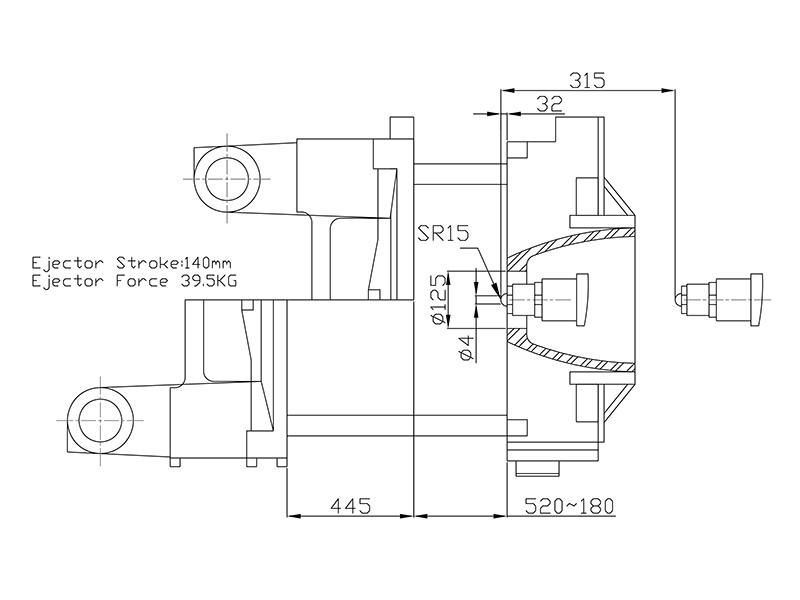

| Ejector Stroke | mm | 140 | ||
| Ejector Force | KN | 39.6 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 15 | ||
| Heater Power | KW | 14 | ||

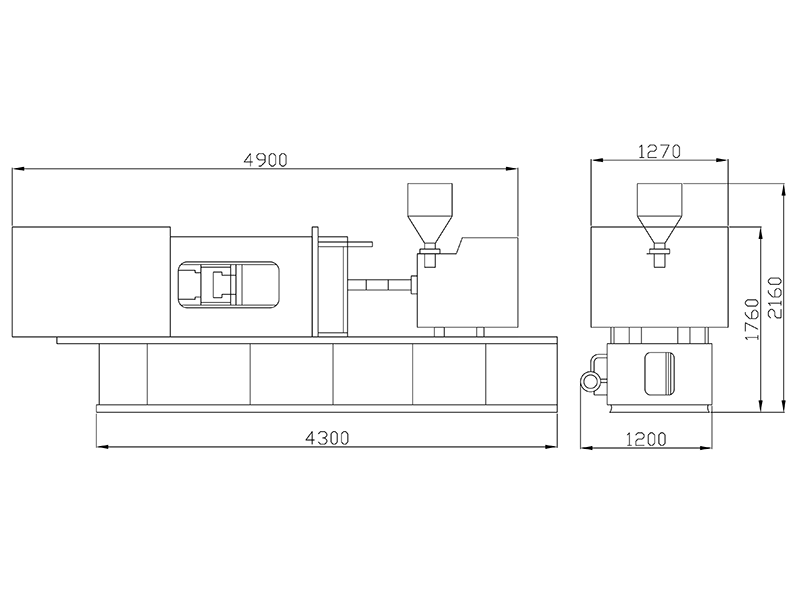

| Machine Dimensions (LxWxH) | m | 4.9x1.27x2.16 | ||
| Oil Tank Capacity | Liter | 300 | ||
| Machine Weight | Ton | 5.65 | ||
| Item | Unit | JMS160 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 40 | 45 | 48 |
| Screw L/D ratio | 22.5 | 20 | 18.8 | |
| Shot Volume (Theoretical) | cm3 | 270 | 342 | 389 |
| Shot weight | g | 243 | 308 | 350 |
| Shot weight | oz | 8.6 | 10.9 | 12.4 |
| Injection pressure | Mpa | 215 | 169 | 149 |
| Injection Speed | mm/s | 103 | ||
| Injection stroke | mm | 215 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 1600 | ||
| Toggle Stroke | mm | 445 | ||
| Space between tie bars | mm | 470x470 | ||
| Platen dimensions (HxV) | mm | 691x691 | ||
| Max.Mould Height | mm | 520 | ||
| Min.Mould Height | mm | 180 | ||
| Ejector Stroke | mm | 140 | ||
| Ejector Force | KN | 39.6 | ||
| Ejector Number | 5 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 15 | ||
| Heater Power | KW | 14 | ||
| Machine Dimensions (LxWxH) | m | 4.9x1.27x2.16 | ||
| Oil Tank Capacity | Liter | 300 | ||
| Machine Weight | Ton | 5.65 | ||

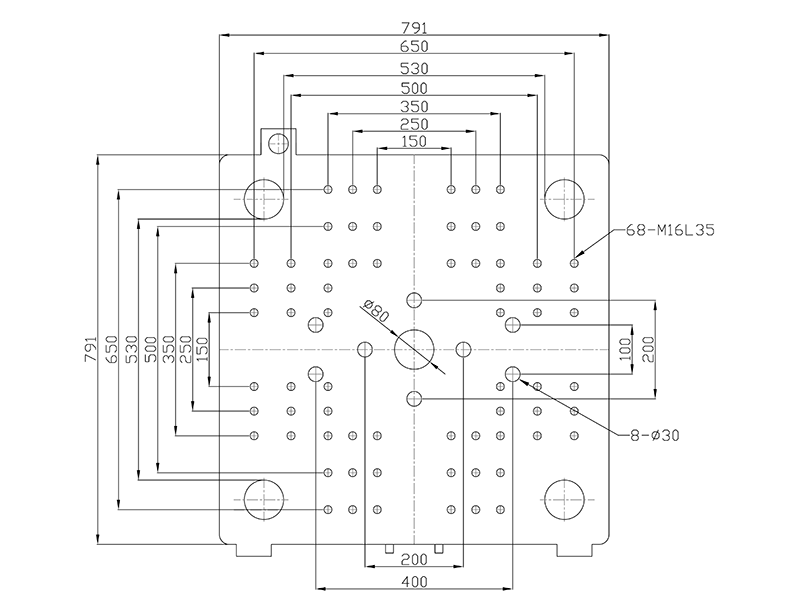

| Item | Unit | JMS220 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw L/D ratio | 22.2 | 20 | 18.2 | |
| Shot Volume (Theoretical) | cm3 | 350 | 432 | 522 |
| Shot weight | g | 315 | 389 | 470 |
| Shot weight | oz | 11.1 | 13.7 | 16.6 |
| Injection pressure | Mpa | 210 | 170 | 141 |
| Injection Speed | mm/s | 96 | ||
| Injection stroke | mm | 220 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 2200 | ||
| Toggle Stroke | mm | 490 | ||
| Space between tie bars | mm | 530x530 | ||
| Platen dimensions (HxV) | mm | 791x791 | ||
| Max.Mould Height | mm | 560 | ||
| Min.Mould Height | mm | 200 | ||

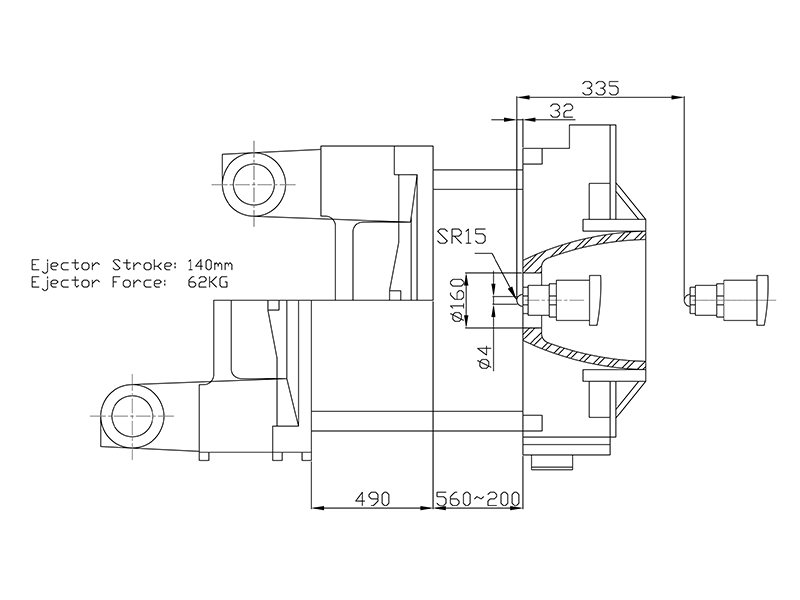

| Ejector Stroke | mm | 140 | ||
| Ejector Force | KN | 62 | ||
| Ejector Number | 9 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater Power | KW | 16.25 | ||

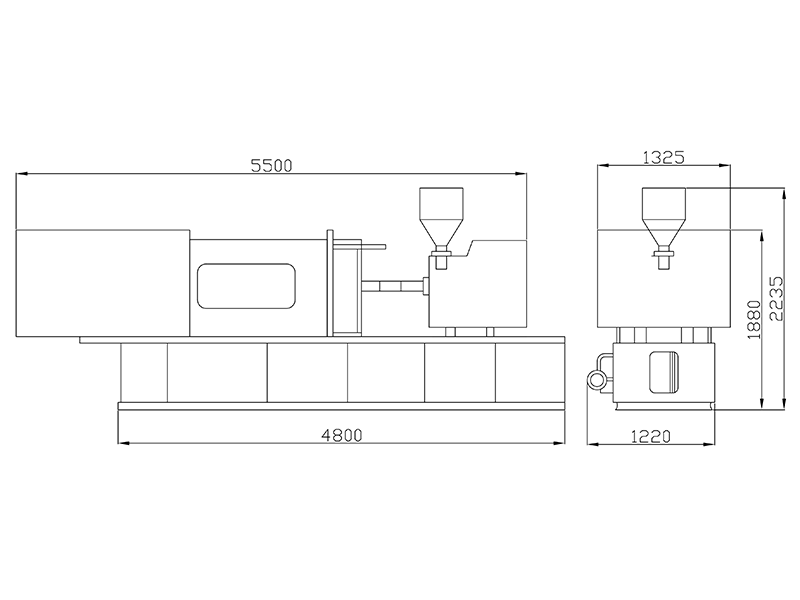

| Machine Dimensions (LxWxH) | m | 5.5x1.32x2.24 | ||
| Oil Tank Capacity | Liter | 360 | ||
| Machine Weight | Ton | 7.1 | ||
| Item | Unit | JMS220 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 45 | 50 | 55 |
| Screw L/D ratio | 22.2 | 20 | 18.2 | |
| Shot Volume (Theoretical) | cm3 | 350 | 432 | 522 |
| Shot weight | g | 315 | 389 | 470 |
| Shot weight | oz | 11.1 | 13.7 | 16.6 |
| Injection pressure | Mpa | 210 | 170 | 141 |
| Injection Speed | mm/s | 96 | ||
| Injection stroke | mm | 220 | ||
| Screw speed | rpm | 0~200 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 2200 | ||
| Toggle Stroke | mm | 490 | ||
| Space between tie bars | mm | 530x530 | ||
| Platen dimensions (HxV) | mm | 791x791 | ||
| Max.Mould Height | mm | 560 | ||
| Min.Mould Height | mm | 200 | ||
| Ejector Stroke | mm | 140 | ||
| Ejector Force | KN | 62 | ||
| Ejector Number | 9 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 18.5 | ||
| Heater Power | KW | 16.25 | ||
| Machine Dimensions (LxWxH) | m | 5.5x1.32x2.24 | ||
| Oil Tank Capacity | Liter | 360 | ||
| Machine Weight | Ton | 7.1 | ||

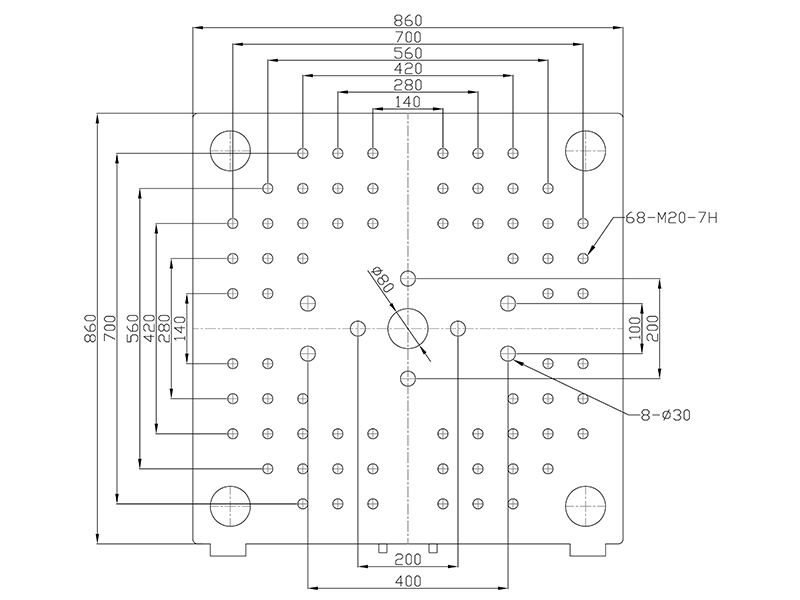

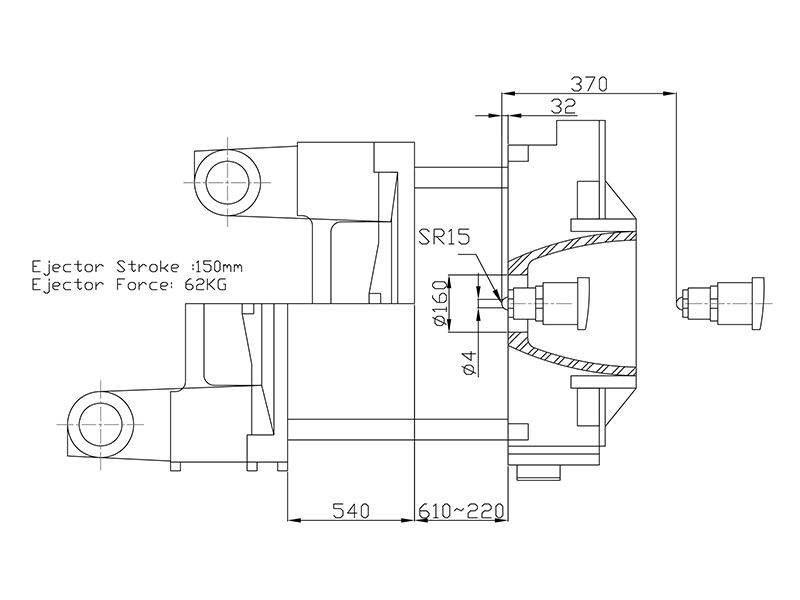

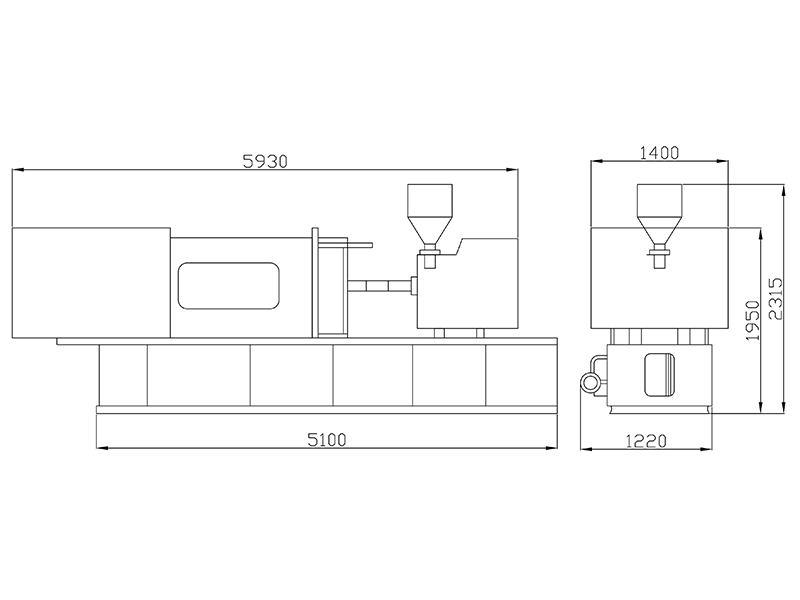

| Item | Unit | JMS260 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 50 | 55 | 60 |
| Screw L/D ratio | 22.5 | 20.5 | 18.8 | |
| Shot Volume (Theoretical) | cm3 | 491 | 594 | 707 |
| Shot weight | g | 442 | 534 | 636 |
| Shot weight | oz | 15.6 | 18.8 | 22.4 |
| Injection pressure | Mpa | 205 | 169 | 142 |
| Injection Speed | mm/s | 91 | ||
| Injection stroke | mm | 250 | ||
| Screw speed | rpm | 0~180 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 2600 | ||
| Toggle Stroke | mm | 540 | ||
| Space between tie bars | mm | 580x580 | ||
| Platen dimensions (HxV) | mm | 860x860 | ||
| Max.Mould Height | mm | 610 | ||
| Min.Mould Height | mm | 220 | ||
| Ejector Stroke | mm | 150 | ||
| Ejector Force | KN | 62 | ||
| Ejector Number | 9 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 22 | ||
| Heater Power | KW | 17.3 | ||
| Machine Dimensions (LxWxH) | m | 5.93x1.4x2.32 | ||
| Oil Tank Capacity | Liter | 405 | ||
| Machine Weight | Ton | 8.5 | ||
| Item | Unit | JMS260 | ||
| Injection Unit: | ||||
| Screw type | A | B | C | |
| Screw diameter | mm | 50 | 55 | 60 |
| Screw L/D ratio | 22.5 | 20.5 | 18.8 | |
| Shot Volume (Theoretical) | cm3 | 491 | 594 | 707 |
| Shot weight | g | 442 | 534 | 636 |
| Shot weight | oz | 15.6 | 18.8 | 22.4 |
| Injection pressure | Mpa | 205 | 169 | 142 |
| Injection Speed | mm/s | 91 | ||
| Injection stroke | mm | 250 | ||
| Screw speed | rpm | 0~180 | ||
| Clamping Unit: | ||||
| Clamping force | KN | 2600 | ||
| Toggle Stroke | mm | 540 | ||
| Space between tie bars | mm | 580x580 | ||
| Platen dimensions (HxV) | mm | 860x860 | ||
| Max.Mould Height | mm | 610 | ||
| Min.Mould Height | mm | 220 | ||
| Ejector Stroke | mm | 150 | ||
| Ejector Force | KN | 62 | ||
| Ejector Number | 9 | |||
| Others: | ||||
| Max.Pump Pressure | Mpa | 16 | ||
| Pump Motor Power | KW | 22 | ||
| Heater Power | KW | 17.3 | ||
| Machine Dimensions (LxWxH) | m | 5.93x1.4x2.32 | ||
| Oil Tank Capacity | Liter | 405 | ||
| Machine Weight | Ton | 8.5 | ||
